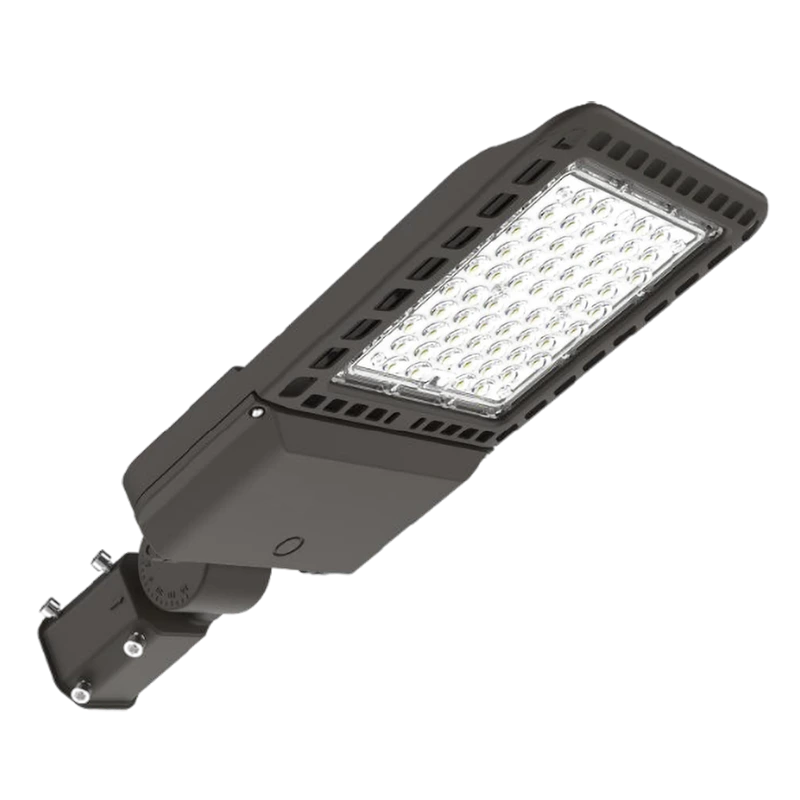

Luz de rua CHZ-ST34 Luzes de rua LED para exteriores

MODEL:

CHZ-ST34

LED CHIPS:

SMD3030 ou SD5050

COLOR TEMPERATURE:

30W 50W 60W 80W 100W 120W 150W 200W 250W

DRIVERS:

>130LM/W@SMD3030, >150LM/W@SMD5050

BEAM ANGLE:

TYPE II TYPE III

REGULATION:

TYPE Ⅰ/ TYPE Ⅱ/ TYPE Ⅲ/ TYPE Ⅳ/ TYPE Ⅴ

VOLTAGE:

100 - 277V / 200~240V

POWER FACTOR:

> 0.95

ELECTRICAL CATEGORY:

Classe I / Classe II

MATERIALS:

Caixa AL / dissipador de calor AL / lente PC

PROTECTION(IP / IK):

IP66 - IK09

INSTALLATION:

Ø 60mm

LIFETIME / WARRANTY:

50.000 horas/5 anos

WORKING ENVIRONMENT:

- 30ºC ~ + 60ºC / 10%-90%RH

CERTIFICATIONS:

ENEC TUV ROHS CB CE ISO9001 ISO14001

investigação

Escreva uma crítica

Описание продукта

Street light CHZ-ST34 Outdoor LED Street Lights

1 High pressure diecast aluminium alloy housing from 30W to 300W.

2. Anti-corrosion with electrophoresis process.

3. Adopt multi-chips package 5050 LED source. Stable performance,low light failure and NO dead lights.

4. The light transmittance of lens up to 98%. System efficacy up to 150lm/w.

5. 5 kinds of brackets optional. Type A,B,C,D,E bracket nearly meet all installation environment.

6 Life-span over 50,000 hours,5 years warranty.

Model No.	Power(W)	Chips	Chips Qty	Chips S/P	Protection Class	Lumen(LM/W）
ST34-60W	60	SMD3030	112	14P8S	Class I	>130
ST34-80W	80	SMD3030	112	14P8S	Class I	>130
ST34-100W	100	SMD3030	112	14P8S	Class I	>130
ST34-100W	100	SMD3030	224	14P8S	Class I	>130
ST34-120W	120	SMD3030	224	14P8S	Class I / II	>130
ST34-150W	150	SMD3030	224	14P8S	Class I / II	>130
ST34-200W	200	SMD3030	224	14P8S	Class I	>130
ST34-200W	200	SMD3030	336	14P8S	Class I	>130
ST34-250W	250	SMD3030	336	14P8S	Class I	>130
ST34-30W	30	SMD5050	28	14P2S	Class I / II	>150
ST34-50W	50	SMD5050	28	14P2S	Class I / II	>150
ST34-60W	60	SMD5050	42	21P2S	Class I	>150
ST34-80W	80	SMD5050	42	21P2S	Class I	>150
ST34-100W	100	SMD5050	42	21P2S	Class I	>150
ST34-100W	100	SMD5050	84	21P2S	Class I / II	>150
ST34-120W	120	SMD5050	84	21P2S	Class I / II	>150
ST34-150W	150	SMD5050	84	21P2S	Class I / II	>150
ST34-200W	200	SMD5050	84	21P2S	Class I	>150
ST34-200W	200	SMD5050	126	21P2S	Class I	>150
ST34-250W	250	SMD5050	126	21P2S	Class I	>150
ST34-60W	60	SMD3030	112	8P14S	Class II	>130
ST34-80W	80	SMD3030	112	8P14S	Class II	>130
ST34-100W	100	SMD3030	224	14P8S	Class II	>130
ST34-60W	60	SMD5050	42	14P3S	Class II	>150
ST34-80W	80	SMD5050	42	14P3S	Class II	>150

SMD5050 High quality LED wick

Low power consumption and high brightness

SMD LED Chips

Hiah Brightness

100-277V

Efficient Cooling

Service life

Fashionable housing design with great heat dissipation die cast aluminum.

Type II,III,IV,V,125×50°, 145×100°optional

5 kinds of brackets optional

Pole mounted

Сценарий применения

Widely used in trunk roads, highways, elevated roads, streets, bridges, sidewalks and other road lighting, as well as squares, schools, parks and other outdoor lighting needs.
