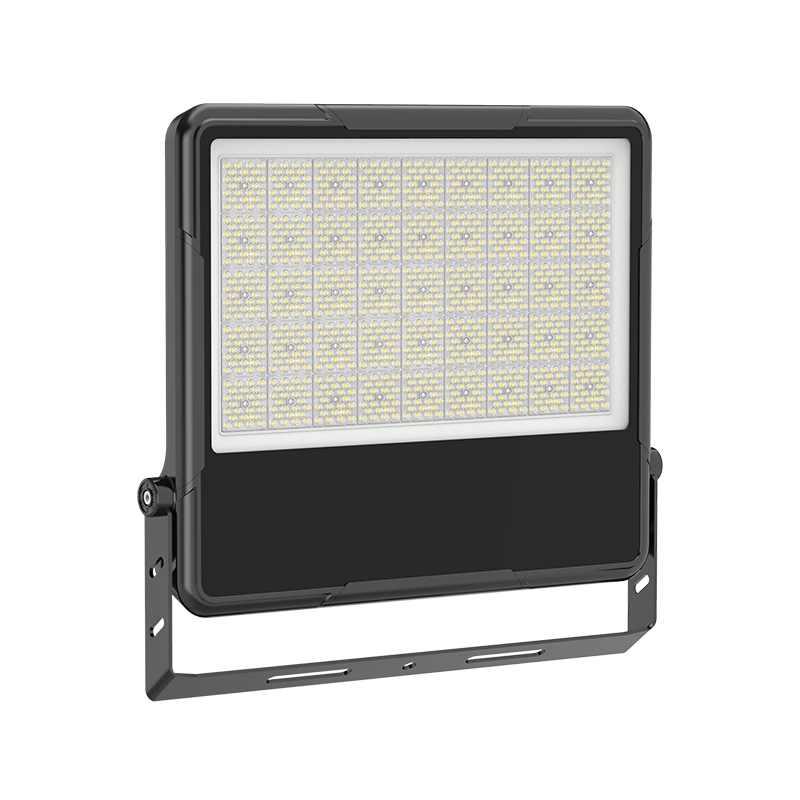

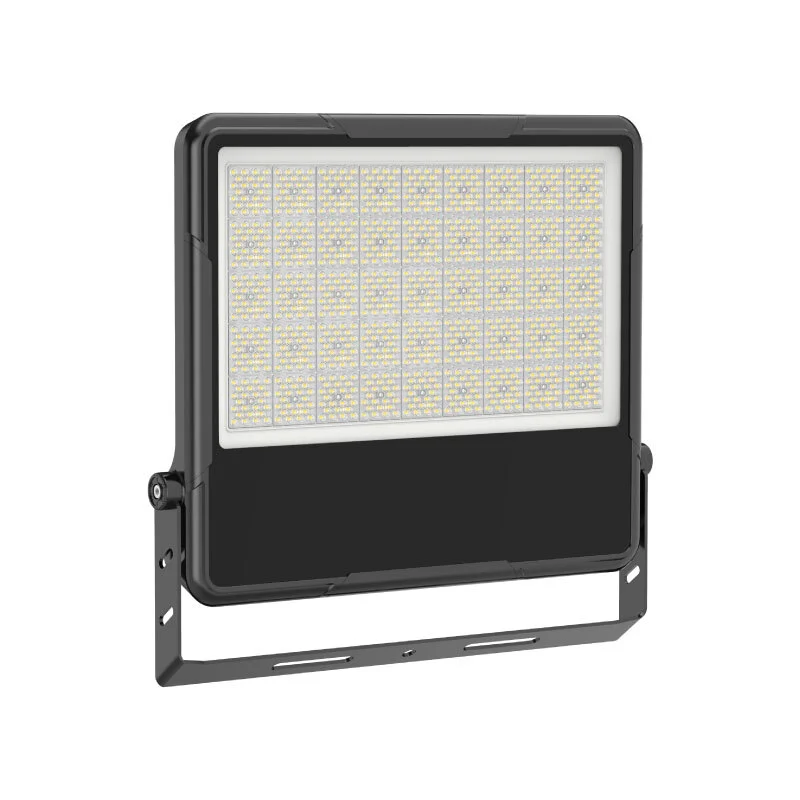

NEW PRODUCT LED FLOOD LIGHT CHZ-FL27B

MODEL:

CHZ-FL27B

LED CHIPS:

OSRAM 2835

COLOR TEMPERATURE:

3000K / 4000K / 5000K / 5700K / 6500K

DRIVERS:

SOSEN

BEAM ANGLE:

120° 30°/45° 60°/90° T2M/T3M

REGULATION:

0-10V / DALI

VOLTAGE:

100 - 277V / 200-240V

ELECTRICAL CATEGORY:

Classe I Classe II

MATERIALS:

Caixa AL / tampa de vidro / lente de PC

LIFETIME / WARRANTY:

50.000 horas/5 anos

WORKING ENVIRONMENT:

- 30ºC ~ + 60ºC / 10%-90%RH

PROTECTION(IP - IK - KV):

IP66 - IK09 - 6KV

LUMEN:

150LM/W

CRI:

> 80

CERTIFICATIONS:

CB CE TUV ROHS ISO9001 ISO14001 ISO50001 ISO45001

investigação

Escreva uma crítica

Parâmetros

Modelo n °	Potência (W)	Salgadinhos	Quantidade de fichas	Fichas S/P	Motorista PF	Ângulo de feixe	Tamanho (CLA)mm
FL27B-30W	30W	SMD2835	75	15S5P	>0.95	120°	212x217x38
FL27B-50W	50W	SMD2835	120	15S8P	>0.95	120°	239x254x38
FL27B-100W	100W	SMD2835	240	24S10P	>0.95	120°	314x302x49
FL27B-150W	150W	SMD2835	360	24S15P	>0.95	120°	364x358x49
FL27B-200W	200W	SMD2835	480	24S20P	>0.95	120°	414x386x51
FL27B-250W	250W	SMD2835	600	24S25P	>0.95	120°	480x460x54
FL27B-300W	300W	SMD2835	720	24S30P	>0.95	120°	480x460x54
FL27B-400W	400W	SMD2835	960	24S40P	>0.95	120°	589x550x56
FL27B-500W	500W	SMD2835	1200	24S50P	>0.95	120°	589x550x56
FL27B-30W	30W	SMD2835	48	12S4P	>0.95	30°/45° 60°/90° T2M/T3M	212x217x38
FL27B-50W	50W	SMD2835	144	12S12P	>0.95	30°/45° 60°/90° T2M/T3M	239x254x38
FL27B-100W	100W	SMD2835	192	24S10P	>0.95	30°/45° 60°/90° T2M/T3M	314x302x49
FL27B-150W	150W	SMD2835	360	24S15P	>0.95	30°/45° 60°/90° T2M/T3M	364x358x49
FL27B-200W	200W	SMD2835	432	24S20P	>0.95	30°/45° 60°/90° T2M/T3M	414x386x51
FL27B-250W	250W	SMD2835	672	24S25P	>0.95	30°/45° 60°/90° T2M/T3M	480x460x54
FL27B-300W	300W	SMD2835	672	24S30P	>0.95	30°/45° 60°/90° T2M/T3M	480x460x54
FL27B-400W	400W	SMD2835	1104	24S40P	>0.95	30°/45° 60°/90° T2M/T3M	589x550x56
FL27B-500W	500W	SMD2835	1104	24S50P	>0.95	30°/45° 60°/90° T2M/T3M	589x550x56
FL27B-100W	100W	SMD2835	480	24S10P	>0.90	120°	314x302x49
FL27B-150W	150W	SMD2835	720	24S15P	>0.90	120°	364x358x49
FL27B-200W	200W	SMD2835	960	24S20P	>0.90	120°	414x386x51
FL27B-250W	250W	SMD2835	1200	24S25P	>0.90	120°	480x460x54
FL27B-300W	300W	SMD2835	1440	24S30P	>0.90	120°	480x460x54

NEW PRODUCT LED FLOOD LIGHT CHZ-FL27B 10

NEW PRODUCT LED FLOOD LIGHT CHZ-FL27B 11

NEW PRODUCT LED FLOOD LIGHT CHZ-FL27B 12

NEW PRODUCT LED FLOOD LIGHT CHZ-FL27B 13

NEW PRODUCT LED FLOOD LIGHT CHZ-FL27B 14

Aplicações

Amplamente utilizado em fábricas, minas, praças, centros de transporte, estádios, campos de golfe e docas, etc.

NEW PRODUCT LED FLOOD LIGHT CHZ-FL27B 15

NEW PRODUCT LED FLOOD LIGHT CHZ-FL27B 16

Dimensão (unidade: mm):

NEW PRODUCT LED FLOOD LIGHT CHZ-FL27B 17

200W (como exemplo)

Dados de embalagem:

Modelo n °	Dimensão (mm)	Tamanho da embalagem (mm)	Embalagem (PCS/CTN)	N.G (KG/PCS)
FL27B-30W	212 × 217 × 38	685×280 × 260	15	1.05
FL27B-50W	239 × 254 × 38	520 × 280 × 295	10	1.35
FL27B-100W	314 × 302 × 49	380 × 365 × 370	5	2.45
FL27B-150W	364 × 358 × 49	420 × 380 × 425	5	3.38
FL27B-200W	414 × 386 × 51	470 × 380 × 455	5	4.09
FL27B-250W	480 × 460 × 54	540 × 325 × 535	4	5.75
FL27B-300W	480 × 460 × 54	540 × 325 × 535	4	5.75
FL27B-400W	589 × 550 × 56	650 × 170 × 625	2	9.38
FL27B-500W	589 × 550 × 56	650 × 170 × 625	2	9.38
